Replace virtual smart card
If a person's laptop is lost, stolen, broken, or replaced, then the virtual smart card must be replaced.
Standard workflow
| Actor | Action | Option | |
|---|---|---|---|
| 1 | Virtual smart card user | In Smart ID Self-Service: Clicks on the active virtual smart card. Clicks Possible actions and selects Replace Virtual Smart Card. | - |
| 2 | Identity Manager | Revokes all valid certificates and sets the virtual smart card to the status Replaced. | - |
| 3 | CA | Recovers encryption certificates and issues new certificates for the virtual smart card. | - |
| 4 | Smart ID Desktop App | Starts and activates a new smart card profile. | - |
| 5 | Virtual smart card user | In Smart ID Desktop App: Enters a PIN. Confirms PIN entry. | - |
| 6 | Smart ID Desktop App | Creates key pairs on the trusted platform module (TPM). | - |
| 7 | CA | Issues certificates. The certificates are stored in Identity Manager and on the TPM. | - |
| 8 | Virtual smart card user | In Smart ID Desktop App: Confirms the new certificates. | - |
| 9 | Identity Manager | In Smart ID Self-Service: Displays the new virtual smart card in the Cards tab and the new certificates in the Certificates tab. | - |
Technical reference

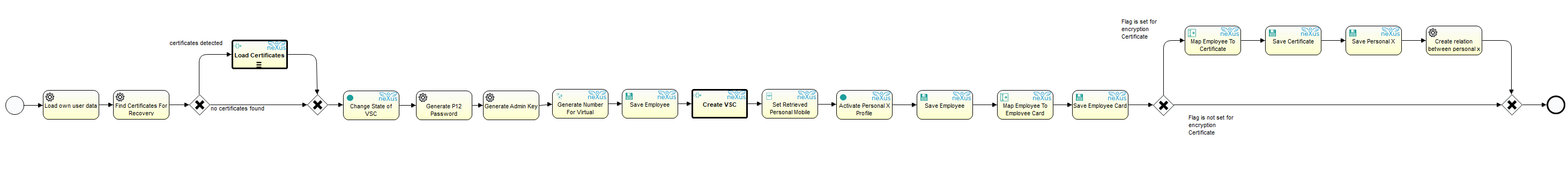

- PcmProcReplaceVSC
Sub-processes
- PcmSubProcCreationOfVSC
- PcmProcLockCertificates
