Certificate Manager Web UI communicates with several components, for example, Protocol Gateway and Nexus Personal Desktop Client .
Overview
Detailed description of the communication flow
1

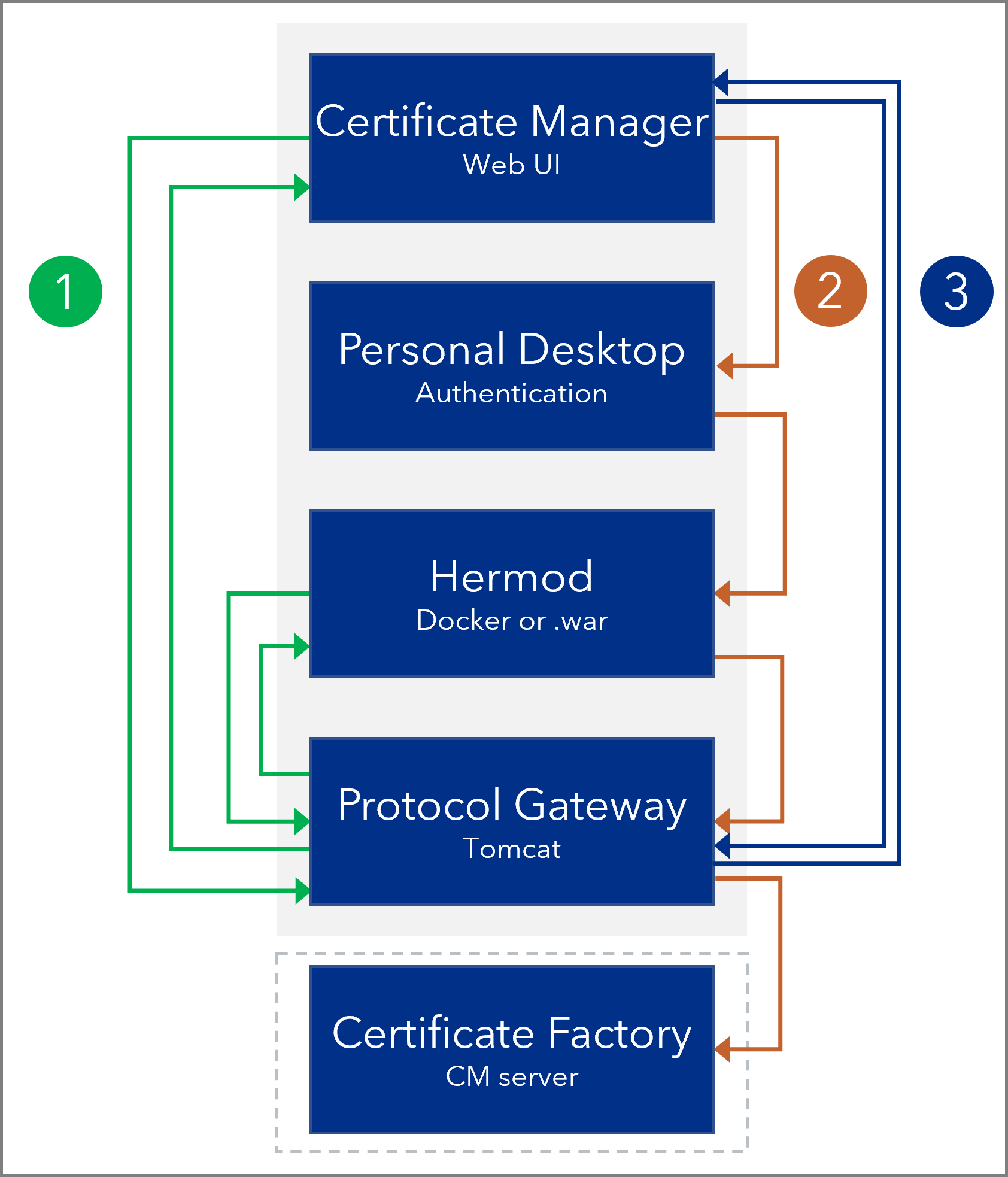

This section describes the green arrows in the illustration.
The user logs in to Certificate Manager Web UI via a URL in a web browser. When connecting, the web UI communicates with Protocol Gateway and activates the CM REST API.
-
Protocol Gateway communicates with Hermod. Hermod initiates the signing (sign-in process) and replies with a plug-out URL to Protocol Gateway.
-
Protocol Gateway sends the plug-out URL to Certificate Manager Web UI.
2
This section describes the orange arrows in the illustration.
Certificate Manager Web UI communicates with the middleware Nexus Personal Desktop Client (Classic).
-
Personal Desktop enables signing and authentication in web browsers without plugins, using the plugout technology, where Personal Desktop is triggered from the browser page.
-
Personal Desktop Client sends the login data to Hermod.
-
Hermod sends a callback to Protocol Gateway.
-
Protocol Gateway communicates with Certificate Factory (CF) to verify that the user is an officer and that the session can be authenticated.
3
This section describes the blue arrows in the illustration.
Certificate Manager Web UI polls for the sign-in process via the Protocol Gateway REST API, and if the process is successful, the web UI will start presenting data.
Additional information
